SNP 2460 K LED 24V/S 4000 K
Art. no.: 102307213

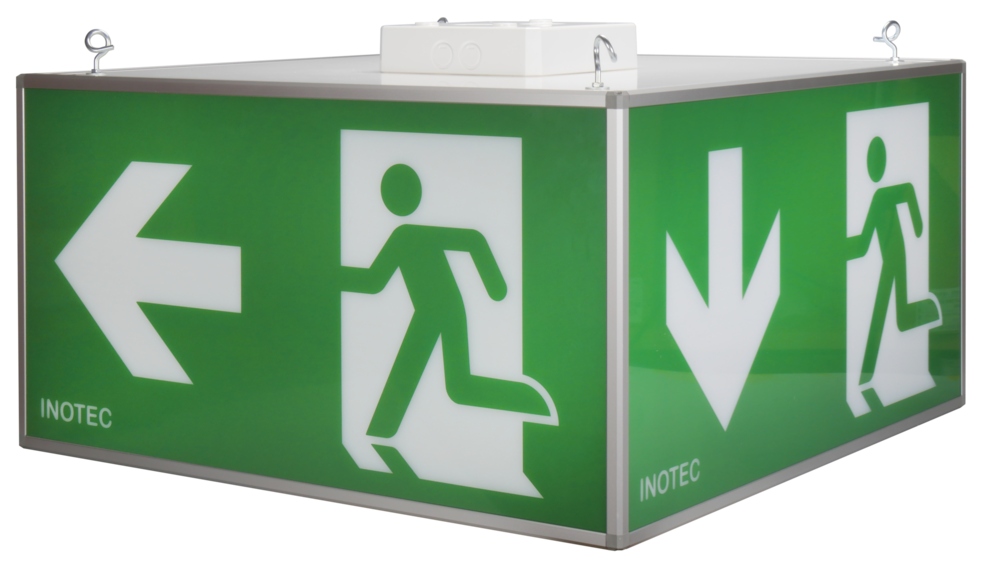

Four-sided emergency exit sign luminaire with high viewing distance and anodized aluminium corner profil. Luminaire body with pictograms prepared for suspended ceiling mounting with luminaire unit fitted from above. Homogeneous pictogram illumination thanks to optimised LED technology and individually replaceable pictograms on each luminaire side.
Technical details
| Protection class |
II |
|---|---|
| Power consumption battery operation |
430 mA |
| Effective power |
10.4 W |
| Illuminant |
1 x 8W LED-module |
| Light colour |
4000 K |
| Material |
aluminium powder-coated |
| Protection category |
IP54 |
| Permitted temperature range |
-15...+40 °C |
| Mounting type |
chain mounting |
| viewing distance |
60 m |
| Nominal voltage DC |
24 V ±25 % |
| Input terminal |
max. 2.5 mm² single-core or max. 1.5mm² multi-core with ferrule |
Downloads
Accessories and replacement parts
L-JET 7/S-max. 24V DC650mA const
Art. no.: 101422691
LED-driver
